Overview
Features
- A more stable finishing quality
Our newly developed high voltage controller has a new function that works to keep voltage at the gun tip at a uniform level, ensuring a more stable finishing quality. - Higher safety・More Intelligent
The RPI-300 high voltage controller is equipped with various safety circuits such as Absolute sensitivity detection (CL) and Slope sensitivity detection (SL). Furthermore, the optional RIC-900 realizes more advanced coating management with enhanced fault detection functions together with the newly added function which outputs coating fault log to the PC. - Improved efficiency
The high performance cascade built in to the body boosts the applied voltage, which is directly related to transfer efficiency, to -100kV. The wrap-around effect (the effect where charged paint wraps around the painted object, coating it right around to the back side) which is a feature of electrostatic coating, is maximized, resulting in superior paint transfer efficiency and contributing to less paint waste. - Easier to use

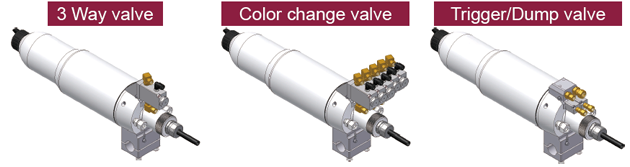

By structuring the paint gun so that the trigger valve and the dump valve are located directly on the gun body, paint passage cleaning and other maintenance operations are made much easier, and as TD valve allows high speed cleaning, resulting in reduction of color change time.

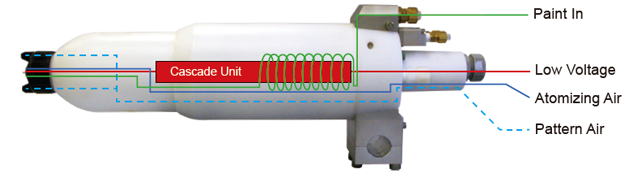

RAgent Supreme Systematic Sketch
